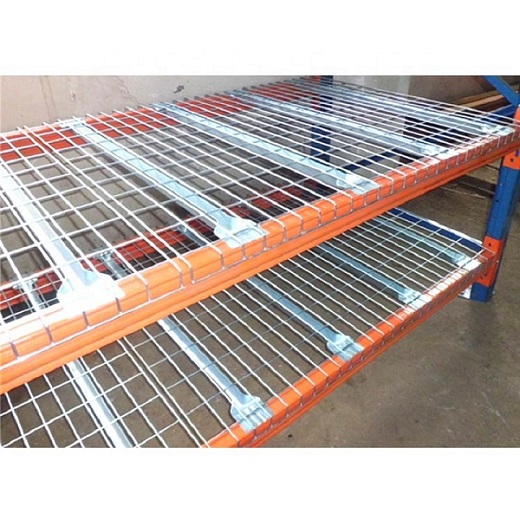

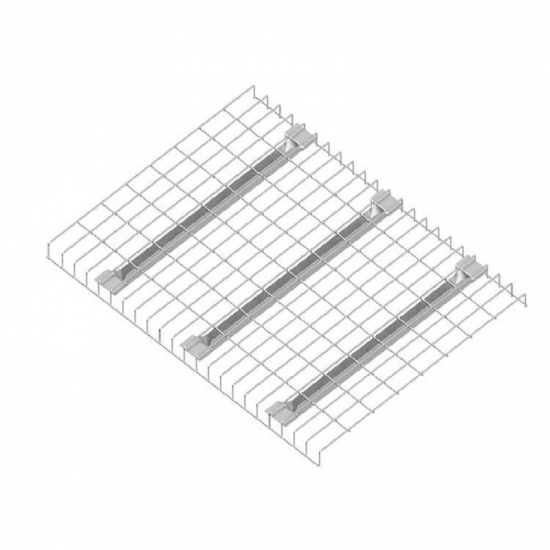

Wire mesh decking is widely used on step beam pallet racks. The two ends of the "U"shape supports are flared flat,easy to install onto the step beam surface with the waterfalls over the beam face to fasten the wire decking. It protects the operators and products,providing heavy load capacity.The wire decking can also be used on C-shape and step beam pallet racks.
Product Features
1)Easy to install-drops into place,no fastening needed;
2)Less expensive and stronger than wood decking;
3)Better illumination of products;
4)Improved product visibility;
5)Economical, long life;
6)Improved Storage Efficiency;
7)Mesh size:2.5"*4.5",but it is okay to be customized.
Some Standard specifications of wire mesh decking
| Model | Wire Guage | Channel(pcs) | Flared Channel Thickness | U.D.L capacity |
| mm | Inch | Lbs | ||
| 24"*46" | 6 | 3 | 2 | 2800 |
| 36"*46" | 6 | 3 | 2 | 2500 |
| 42"*46" | 6 | 3 | 2 | 2100 |
| 44"*46" | 6 | 3 | 2 | 2000 |
| 48"*46" | 6 | 3 | 2 | 1800 |
| 36"*52" | 6 | 4 | 2 | 2500 |
| 42"*52" | 6 | 4 | 2 | 2500 |
| 44"*52" | 6 | 4 | 2 | 2500 |
| 48"*52" | 6 | 4 | 2 | 2500 |

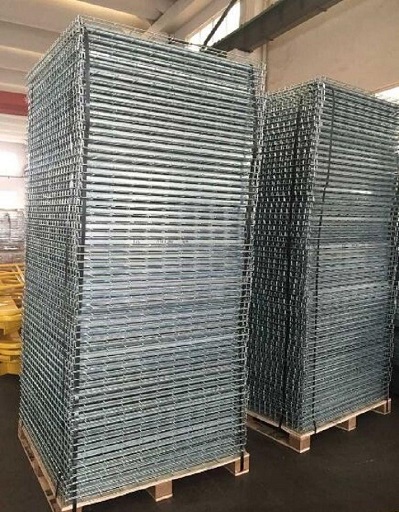

Packing
How to get a quotation?
In order to provide most appropriate quotation with detail solution, please give us below details in advance.
2) Loading capacity you expect.
3) Other requirements.
FAQ
Q:Are you a manufacture or just a trading company?
A:We are a manufacturer and exporter,we have 2 factories in Xiamen and Jiangsu,an independent export company --Xiamen Keeptop.
Q: Can you provide the layouts?
A: We have a professional design team to attend your OEM/ODM requests.
Q What is the delivery time?
A: It is about 10-15 days for a 40'container.
Q: What is your after-sales service time?
A: We guarantee after-sale service in 24 hours.
