Installation method: 1. Put up a upright frame and insert two beams into the bottom diamond hole to align.2. Put up another upright frame, insert the beam according to step 1, pay attention to the alignment. 3. According to the above insertion method, insert the remaining beams in sequence according to the required floor height and pay attention to alignment. 4. Put the decking on top of the box-beam in turn.

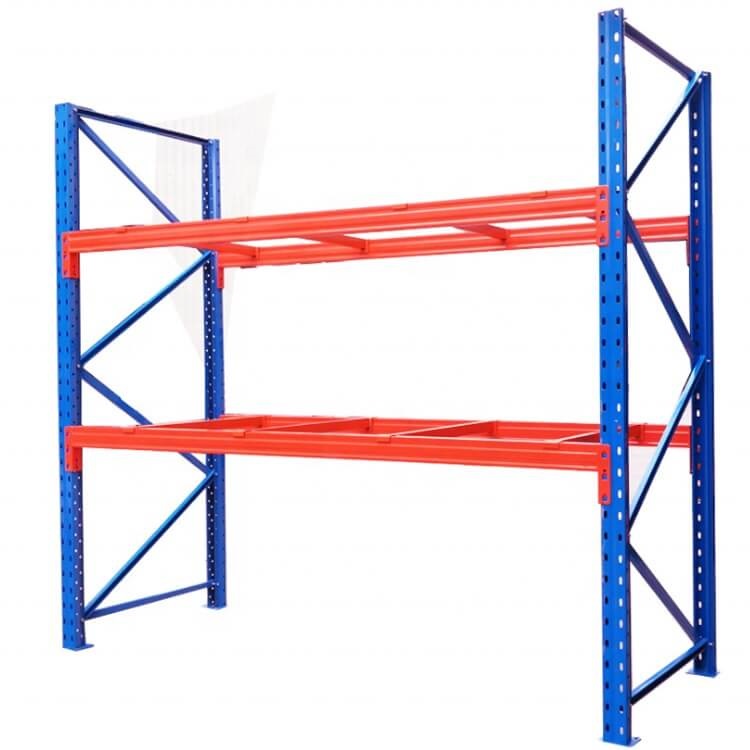

    How to install heavy duty racks：1. First, install the horizontal brace and diagonal brace on the column with screws.2. The assembled two upright pieces (one upright piece = two uprights, several horizontal braces, several diagonal braces) are erected on the ground. 3. The distance between the two upright frames can be adjusted to the length of the beam and then the beam can be installed. 4. When installing the additional rack, first install the upright frame, and then adjust the distance between the installed upright frame and the upright frame on one side of the main frame to the length of the beam, and then install the beam.

    How to install cantilever racks：1. The special profile is used as the base, and the two pieces of C-shaped steel are welded back to back with connecting steel plates. The width of the connecting steel plate is the width of the column.2. After the two pieces of c-shaped steel are welded, open the connecting bolt eye at the connecting column position to facilitate connection with the column. 3. The bottom plate is connected by side welding, which is convenient for the expansion bolt to be connected to the ground.
