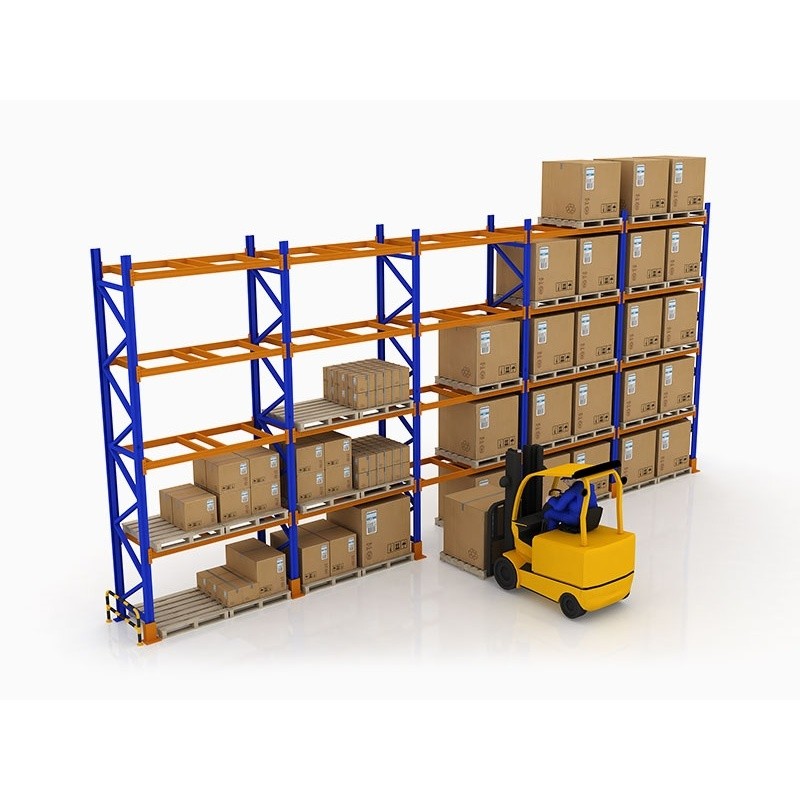

Pallet racks, the most common in domestic storage systems, use pallets as storage units, which are stored and taken out by forklifts.First, determine the type, specification, size of the pallet, as well as the single load and stacking height according to the characteristics of the package and its weight of the assembly.Then it is determined according to the span, depth and layer spacing of each pallet, the effective height of the warehouse bottom and the maximum fork height of the forklift.

Advantages of pallet racks:

1. The economical rack can be modified at the bottom of the shelf to realize the manual selection of the bottom of the goods

2. The first layer of pallets can be placed directly on the ground, saving beams and facilitating direct handling with pallet trucks

3. Low ground requirements, general standard ground can meet the requirements of elevated floors below 10 meters

4. High location utilization, up to 95%

5. The height of the warehouse can be fully utilized, and the height of the goods can be placed close to the full height of the warehouse height

6. The beam is easy to adjust and disassemble to meet the height of different pallets

7. Good adaptability, can use almost all kinds of unit commodities

8. Convenient, fast and efficient storage of goods

9. Applicable to all kinds of forklifts and equipment

The unit shelf span is generally within 4 meters, the depth is within 1.5 meters, the height of low and high warehouse shelves is generally within 12 meters, and the height of ultra-high warehouse shelves is generally within 30 meters(Such warehouses are basically automated warehouses with a total height of several sections within a 12-meter column. Most of these warehouses use forward-moving electric truck forklifts, balanced heavy-duty battery forklifts, and three-way forklifts for maintenance operations.Electric stackers can also be used for short racks, super high-position warehouses, with stacker maintenance operations.)

This racking system has high space utilization, flexible and convenient access, supplemented by computer management or control, and can basically meet the requirements of modern logistics systems, and is widely used in manufacturing, third-party logistics and distribution centers.It is suitable for both small-batch projects with many varieties and small-batch projects with few varieties. For forklift maintenance operations, one is to reduce labor input and human resource costs, and the other is to shorten the operation time and improve work efficiency.
