Storage Heavy Duty Pallet Racks Manufacturer in China

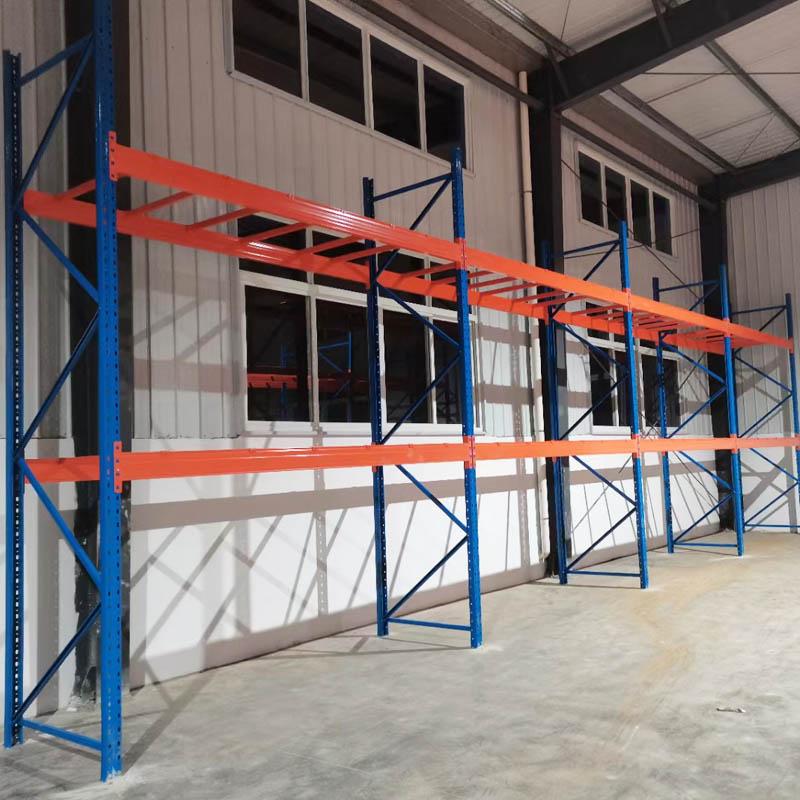

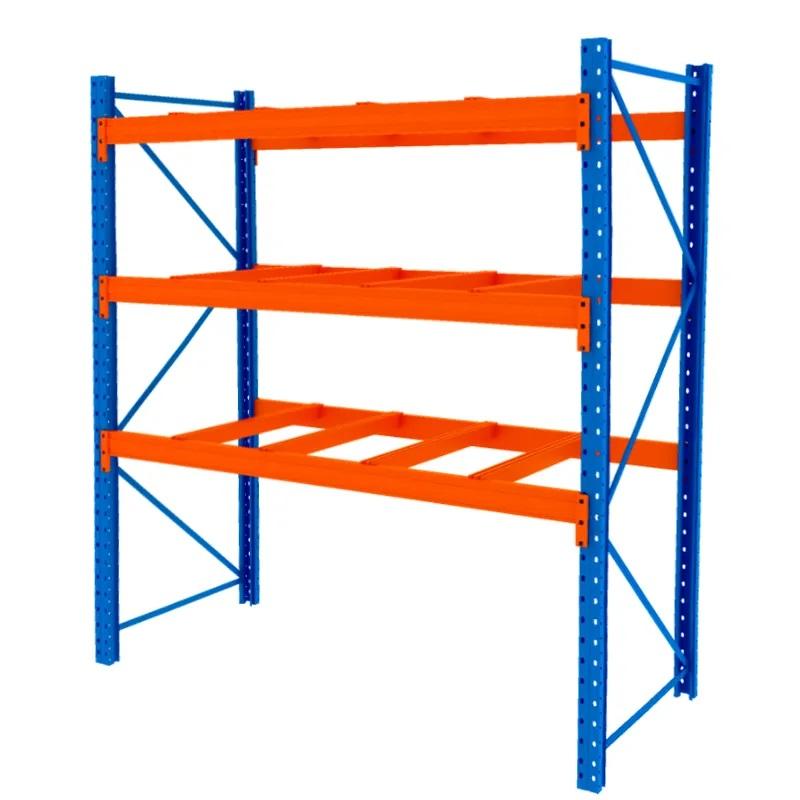

Heavy crossbeam type shelf is made of high-quality cold-rolled steel plate and rolled into shape. The column can be as high as 12 meters without joints in the middle. The crossbeam is of clasp structure, which has large bearing capacity and is not easy to deform. The hanging piece between the crossbeam and the column is a cylindrical convex insert, which is reliable in connection and easy in disassembly and assembly. The safety pin is used to prevent the crossbeam from being lifted when the forklift is working.

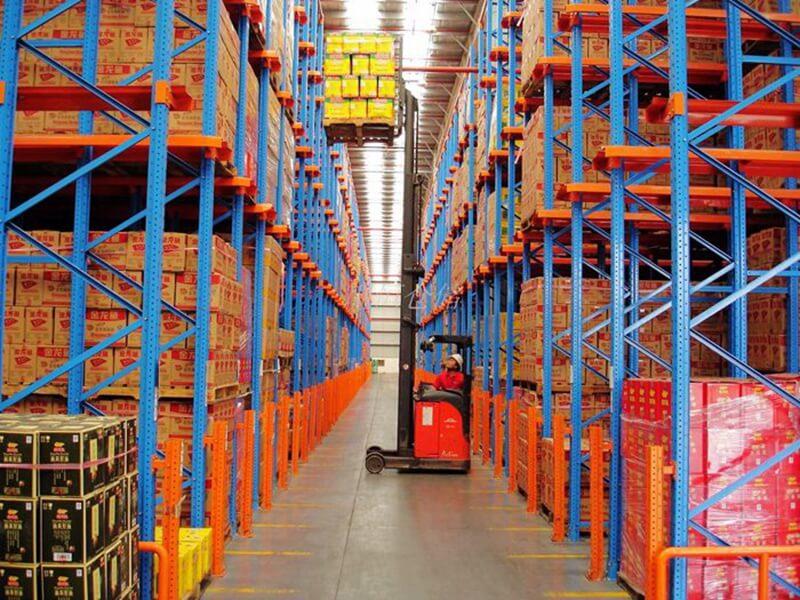

The height and migration of heavy shelves can be changed at will to realize the_ 100% picking is generally carried out with forklift and stacker trucks. It has high flexibility, can combine multiple storage methods, good stability, high space utilization rate, and the crossbeam is directly buckled without nuts, making installation more convenient.

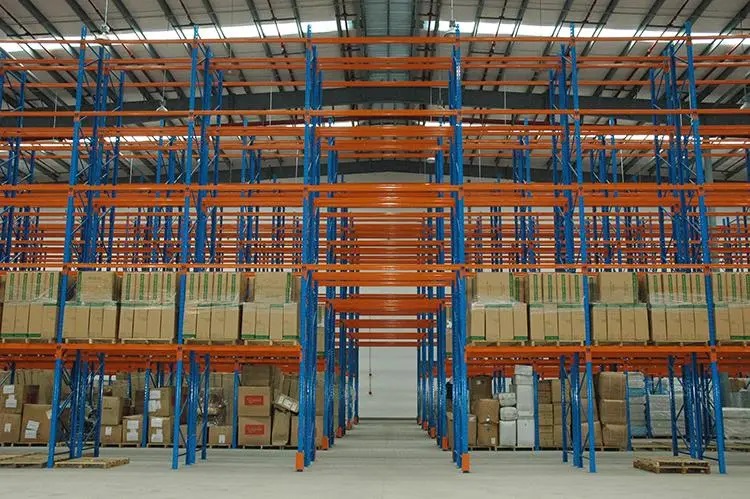

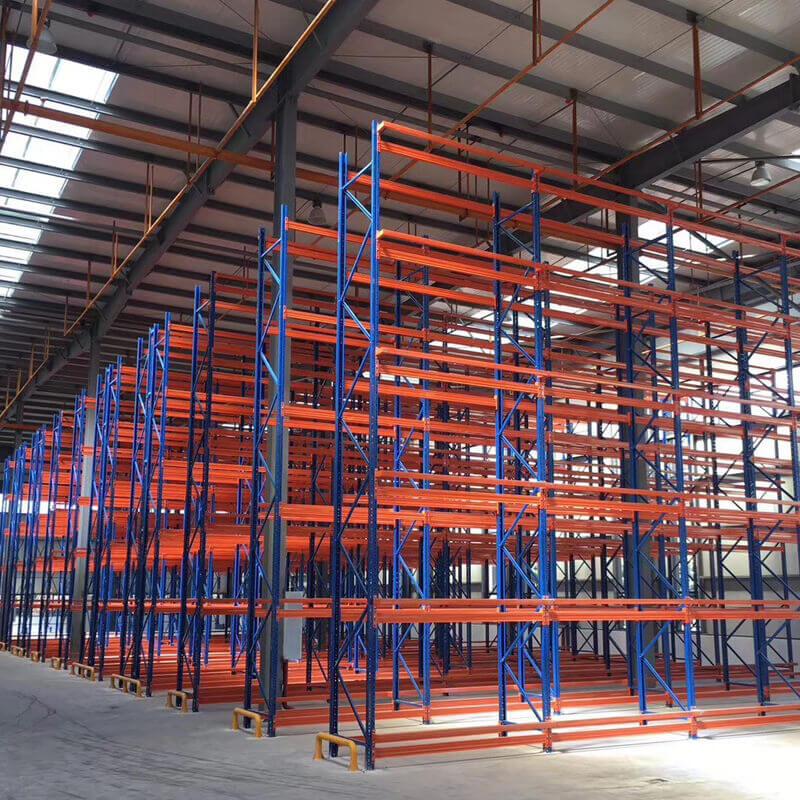

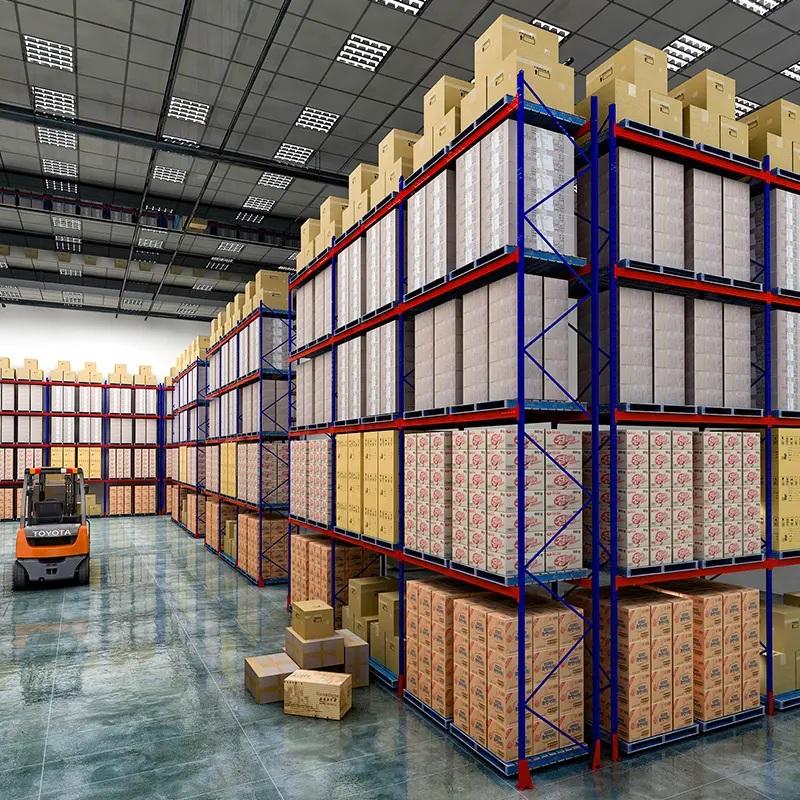

This kind of shelf system is the most commonly used storage system type at present, and is widely used in manufacturing, third-party logistics, distribution centers, warehousing supermarkets and other fields. This kind of shelf is most used in high-level warehouses, and most of the shelves in automated warehouses also use this kind of shelf.
Some specifications

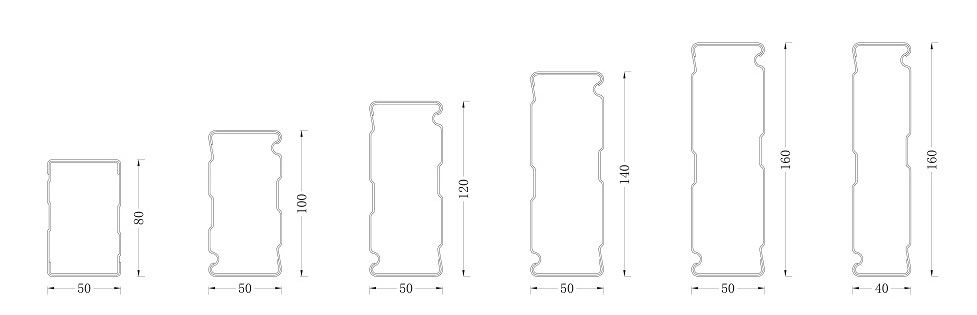

Uprights
Box Beams
Product Feature
1 Upright is formed by high-quality cold rolled steel.Surface treatment: powder coated
2 Box beam or step beam used. Beam Load: 500-3000KGS/Layer
3 Connecting of the upright and beam with wedging, equipped with safety pin to make sure safety
4 Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire mesh decking, plywood shelf, etc.
5 First level pallets can be placed on the floor
6 The beam can be adjusted up and down according to 75MM hole spacing
7 Length, width and height can be customized according to requirements
How to get a quotation?
In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:
1: The racking dimension and total quantity.
2: Usage areas and layout plan.
3: Loading capacity you expect.
4: Other details such as the temperature of cold storage,the height of warehouse,and so on.
FAQ
Q:Are you a manufacture or just a trading company?
A:We are a manufacturer and exporter,we have 2 factories in Xiamen and Jiangsu,an independent export company --Xiamen Keeptop.
Q: Can you provide the layouts?
A: We have a professional design team to attend your OEM/ODM requests.
Q What is the delivery time?
A: It is about 10-15 days for a 40' container.
Q: What is your after-sales service time?
A: We guarantee after-sale service in 24 hours.
