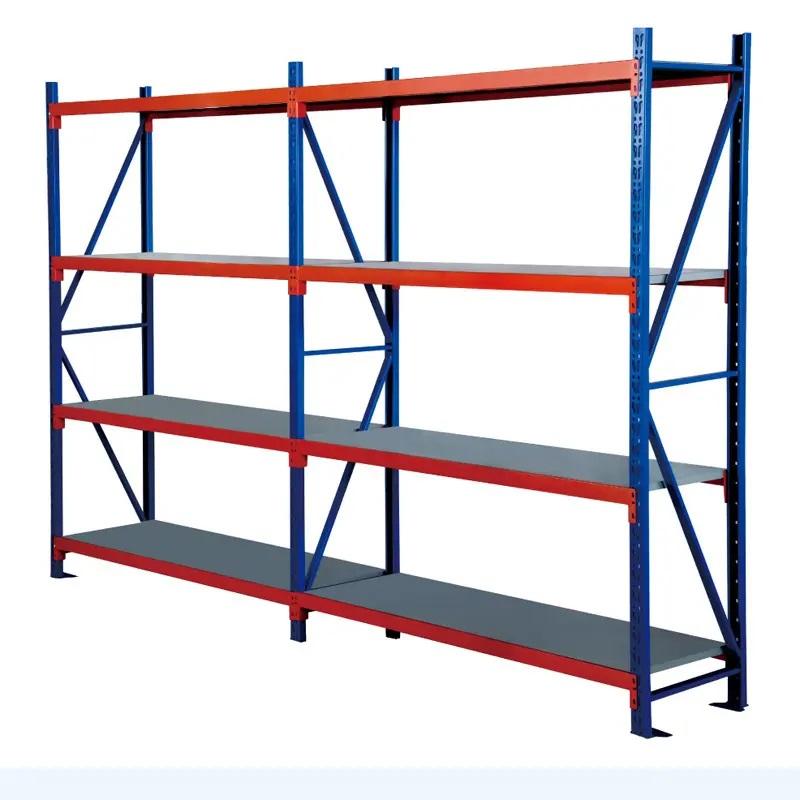

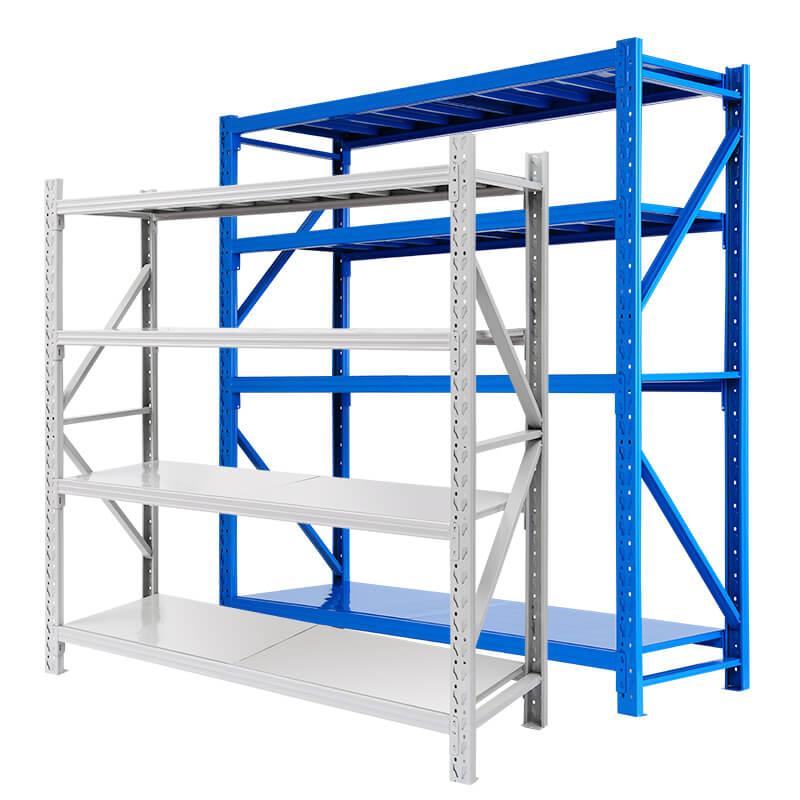

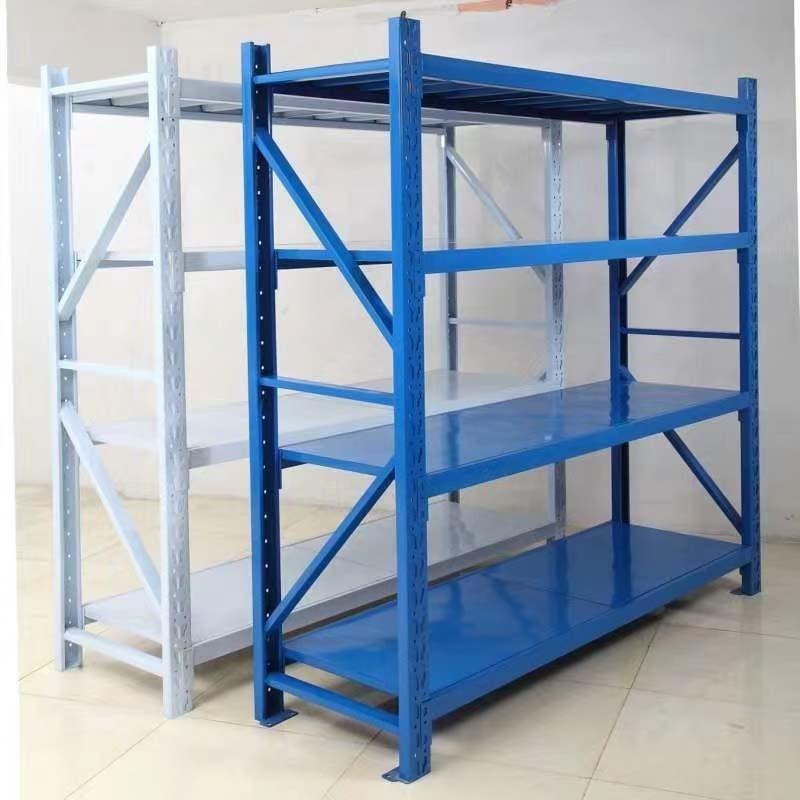

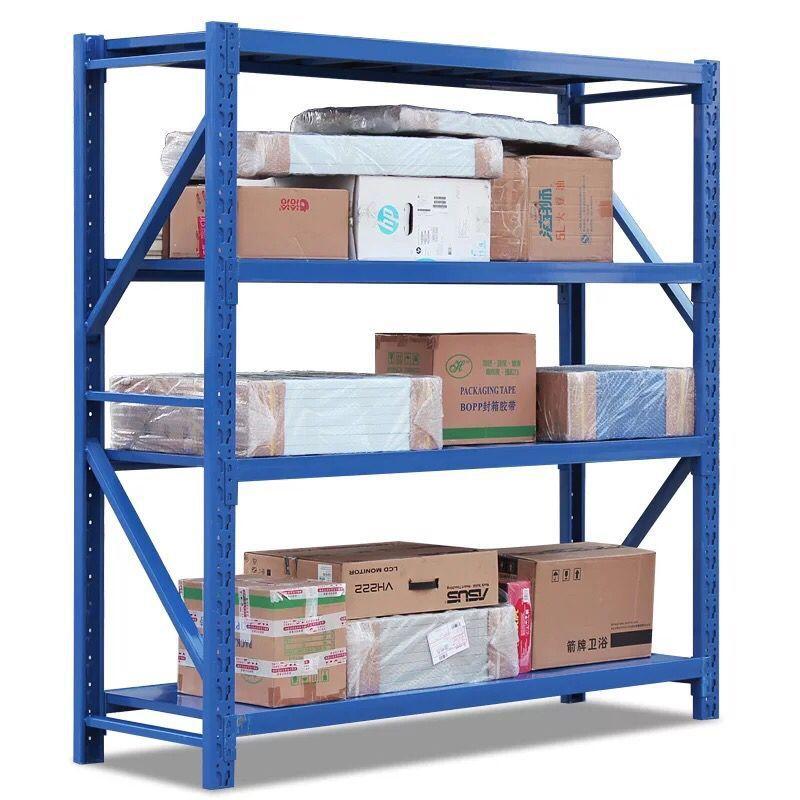

Warehouse Steel Storage Longspan Shelving System
Shelves are usually manually stored and stored. They are assembled structures with average adjustable layer spacing. The goods are also usually whole or not very heavy unpacked goods. The shelf height is usually less than 2.5m, otherwise it is difficult to involve manual work. If the height is supplemented by a climbing car, the length can be set at about 3m. The length of unit shelf should not be too long, and the width of unit shelf should not be too deep. According to the load capacity of each layer of unit shelf, it can be divided into light, medium and heavy duty shelf shelves. The deckings are mainly steel deckings and wood deckings.
Different types of shelf shelves bear different loads and can carry different types of goods,such as heavy duty long span racking,the he load of each layer of unit shelf is usually 500~4000kg. The length of unit shelf is usually within 3m, the width is beyond 1.2m, and the height is unlimited. It is usually combined with and coexists with the heavy pallet shelf. How many layers of pallet shelves are placed on the upper layer. The part of pallet shelf whose length is less than 2m is usually pallet shelf, which should be accessed by forklift. It is mainly used for the situation that some goods need to be stored and withdrawn in a lump sum as well as in a single consignment. It is rare in small warehouse supermarkets and logistics equipment centers.
Product Features
1) Fully assembled structure, free combination, convenient and flexible installation and disassemble.
2) Light weight,heavy load capacity,artistic shape and freely to assemble and disassemble.
3) The decking can be adjusted vertically according to the height of the goods.
4) Surface treatment using electrostatic powder to anti-rust and satisfy the long-term use.
5) Less capital investment, widely used in factories, shopping malls and other storage requirements.
6) The upright is formed by cold rolling of fine steel decking,and is made by punching on the lathe,with butterfly hole.

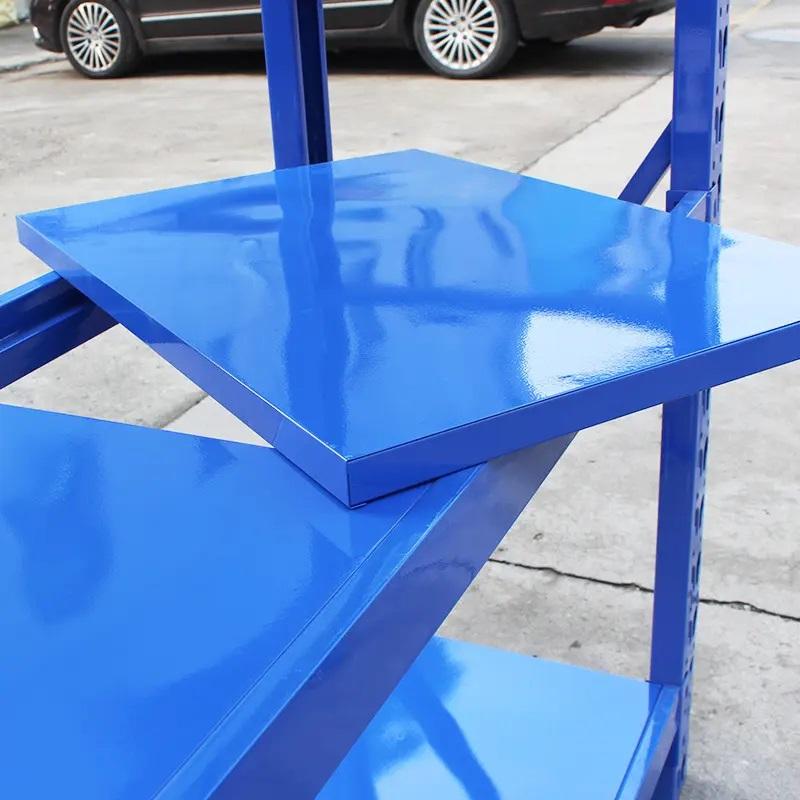

7) The surface is polished, derusted, degreased, and sprayed with electrostatic powder, which is not easy to oxidize, and can be sprayed according to the color specified by the customer.
Some standard specifications of light duty rackings
Uprights
Beams
| Size | Thickness | Loading Capacity |
| 100X40X200mm |
Upright: 0.6-0.8mm Beam: 0.6-0.8mm Plate: 0.25-0.4mm |
80-150kg |
| 120X40X200mm | ||
| 150X40X200mm | ||
| 200X40X20mm | ||
| 100X50X200mm | ||
| 120X50X200mm | ||
| 150X50X200mm | ||
| 200X50X200mm | ||
| 120X60X200mm | ||
| 150X60X200mm | ||
| 200X60X200mm |
Components Drawing
Packing
How to get a quotation?
In order to provide most appropriate quotation with detail solution, please give us as follow details in advance:
1: The racking dimension and total quantity.
2: Usage areas and layout plan.
3: Loading capacity you expect.
4: Other details such as the temperature of cold storage,the height of warehouse,and so on.
FAQ
Q:Are you a manufacture or just a trading company？
A:We are a manufacturer and exporter,we have 2 factories in Xiamen and Jiangsu,an independent export company --Xiamen Keeptop.
Q: Can you provide the layouts？
A: We have a professional design team to attend your OEM/ODM requests.
Q What is the delivery time?
A: It is about 10-15 days for a 40' container.
Q: What is your after-sales service time？
A: We guarantee after-sale service in 24 hours.
